Jump to a section...

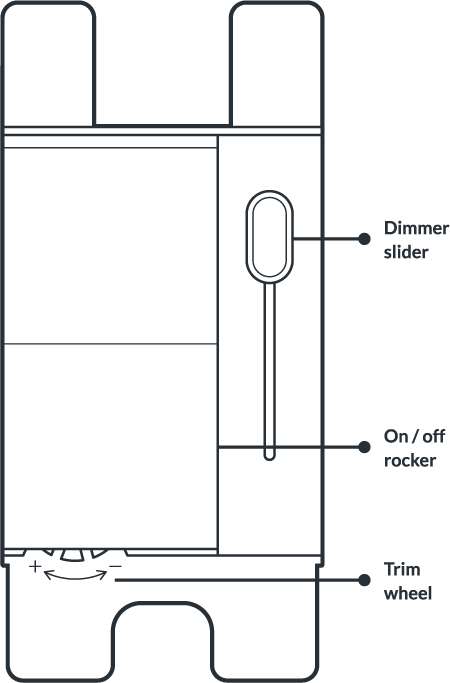

Get to know your Simple Dimmer
- The Simple Dimmer has an on/off rocker switch to turn your lights on and off.
- Brightness can be adjusted with the dimmer slider.
- Ability to set dimming range with the trim wheel.
- Compatible with lights controlled by one switch (single-pole) or lights controlled by multiple switches (multiway).
Setting up your Simple Dimmer
The Simple Dimmer is easily installed the same way as all our other switches!
For instructions on setting the dimming range (trim) on your Simple Dimmer, click here.
Troubleshooting your Simple Dimmer
- In single-pole circuits (i.e. the Simple Dimmer is the only switch controlling the light):
- Slide the brightness slider all the way up to ensure it's not simply dimmed too low.
- Try the Simple Dimmer on a few different lights to rule out any wiring issues.
- Still not controlling the light? Contact support!
- In multi-way circuits (i.e. multiple switches controlling the light):
- Slide the brightness slider all the way up to ensure it's not simply dimmed too low.
- Try the Simple Dimmer on a few different lights to rule out any wiring issues.
- Ensure that you're only using one Simple Dimmer, and that all other switches controlling this light are 3-and-4-way Simple Rocker Switches.
- If three or more switches control the light, the Simple Dimmer must be in the first (Line) or last (Load) position in the circuit. If you don't know which that is, try it in a few locations!
- Still not controlling the light? Contact support!
- Try setting the dimming range (trim) on your dimmer using these instructions.
- Ensure that the bulbs are dimmable - this is usually printed near the base of the bulb.
- Try the Simple Dimmer on a few different lights to rule out any wiring issues.
- If your light is still not dimming when using the slider, contact support!
- Ensure that the bulbs are dimmable - this is usually printed near the base of the bulb.
- If the lights are flickering at the lower end of their dimming range, try setting the dimming range (trim) on your dimmer using these instructions.
- Check that your lights aren't exceeding the maximum dimmable load for your Simple Dimmer:
- Incandescent/Halogen lights: 600W (1-gang), 500W (2-gang), 400W (3-gang)
- LED/ELV/MLV lights: 150W
- Check out our article on flickering lights for more information.
- Still experiencing flickering? Contact support!
