Important
This section is for the Smart Switch (Gen2) Devices only. If you have a Smart Dimmer, check out our Smart Dimmer Guide. If you have our previous generation of the Smart Switch, check out our guide Smart Switch Guide.
For a PDF of the Smart Switch instructions, check out the product guide page.
The Deako Smart Switch Gen 2 (DS2023) includes all the core features of the previous Smart Switch (DS2005), with important enhancements designed to improve setup and user experience. The new Gen 2 model adds Magic Linking for automatic multiway switch setup—eliminating manual linking steps—and a customizable Beacon light that provides visual status and locator functionality. These improvements make the Gen 2 switch deliver everything the original offered, while making installation easier and adding more functionality to transform the way you connect with your home.
Factory reset a device to erase all information from it including name, schedules, scenes, timers, and groups.
- Remove the switch from the Deako app
- Hold down the configure button on the Deako Switch
- Wait until the configure button light turns red
- The switch will reboot and flash green for a few seconds and once the light is off, the switch has successfully reset
Standard linking
To prevent cross-linking, complete Magic Linking one circuit at a
time. Linking
devices on multiple circuits simultaneously can cause switches from
different
circuits to pair incorrectly, leading to improper behavior.
If cross-linking occurs, perform a factory reset on the affected devices and relink them individually to the correct circuit.
- Identify every switch that operates the light (leave them installed for now).
- Remove all of the switches that operate the light
- Install DS2023 Smart Switch (Gen2) in each switch position
- Wait for the the beacon status light to turn off on all switches- this may take a few minutes
- Test to make sure each switch properly controls the light
If there are any issues with Magic Linking, try the steps below.
- Identify every switch that control the light by toggling the existing switch on and off.
- Remove all existing switches that control the light, leaving the backplate locations empty.
-
Insert a Smart Switch into one of the empty backplate locations,
wait 3-4
seconds for the Beacon Light to flash green.
- If the Beacon Light did not flash green then remove the switch, move to a different switch location and repeat the process.
- If the Beacon Light did flash green move on to the next step.
- Press and hold the blue configure button until the Beacon Light flashes purple, about 3 seconds. The Beacon Light will continue to flash purple, this switch is Linking-ready mode.
-
Move to the next switch location and install another Smart Switch.
Wait 3-4 seconds for the Beacon Light to flash green.
- If the Beacon Light did not flash green then remove the switch, move to a different switch location and repeat the process. If this is the only remaining switch in the circuit and Beacon Light did not flash green this may indicate a wiring issue, please contact Deako support for more help.
- If the Beacon Light did flash green press and hold the blue configure button until the Beacon Light flashes purple, about 3 seconds.
-
Repeat step 5 until every Smart Switch is installed and blinking
purple.
- Tip: Linking Ready mode times out after two minutes; if this happens simply re-enter Linking Ready mode if a switch times out.
- Press and hold the configure button until the Beacon Light flashes white, about 3 seconds, then release. This will initiate Linking, all the switches will begin to flash white and Link.
- Wait until the Beacon Light on all switches turns off, this may take up to 3 minutes.
- Finally, test each switch to confirm it controls the light as expected.
- Open the Deako app and tap the plus button on the home page
- Go to the switch you're adding and press and hold
- Select the type of device to add
- Starting provisioning will begin
- Follow in-app prompts for location and type
- You're now done adding the switch!
Sunrise/Sunset is a setting in Schedules that allows your Smart Switches/Dimmers to turn on or off with the sunrise or sunset. Get a jump on the day or wind down with the sun!
Here's additional information to set your sunrise/sunset schedule
What time does Deako use for Sunrise/Sunset?
This feature uses Civil Twilight - Sunrise is at the start of dawn and Sunset is at the end of dusk. This is the standard for sunrise/sunset features.
Creating a Sunrise/Sunset Schedule
- Open the Deako App and press the + icon in the upper right
- Select Schedule
- Under At this Time select Sunrise and decide how many minutes, if any, before sunrise the schedule should be
- Under Take this action choose the device and tap on the box that appears to decide to turn on or off
- Press Continue
- Select the days you want the schedule to occur
- Press Save
- Repeat steps 1-7 for Sunset!

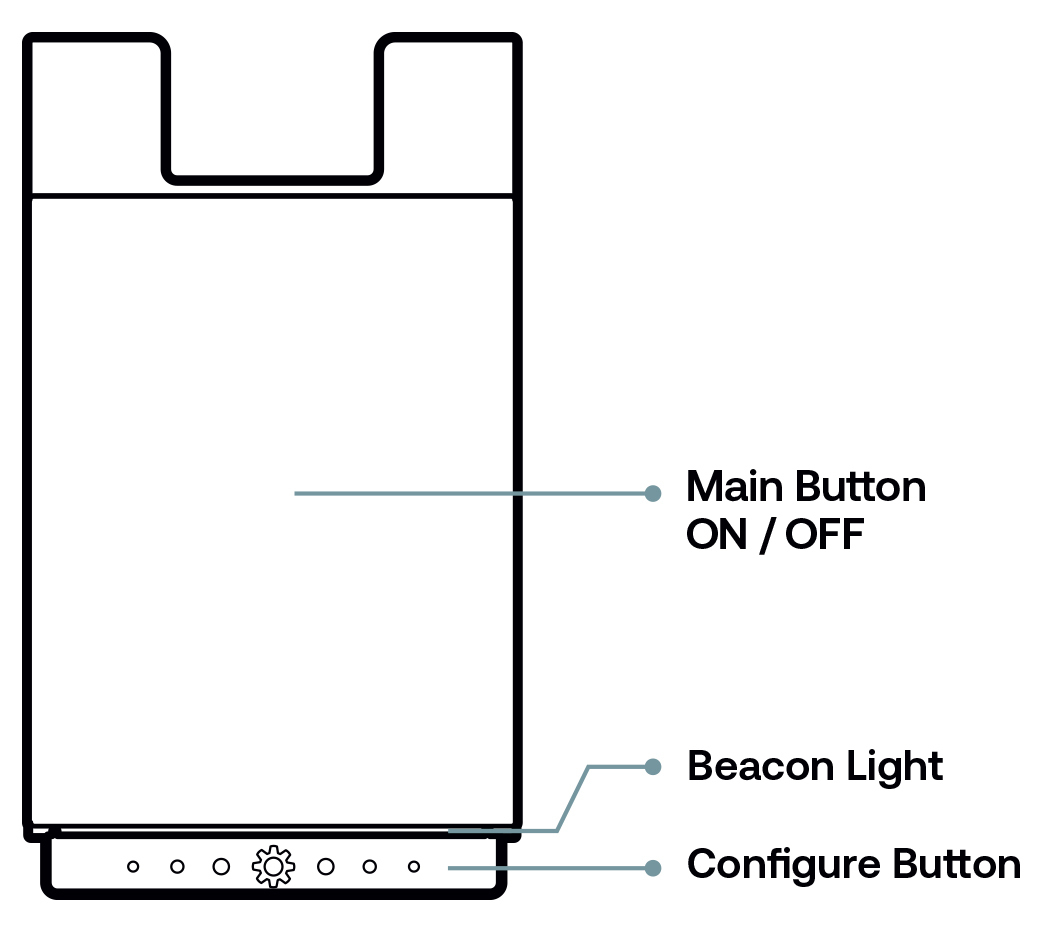

Blinking Green: Powering up
Blinking Purple: Ready to link with additional
switch, or
receiving OTA update
Blinking Blue: Pairing with Deako App
Blinking White: Pairing or Linking in progress
Solid White: Pairing or Linking successful or
programmed
Beacon function
Blinking Red: Error occurred, try again
Solid Red: Factory resetting
