Download the PDF at the bottom of the page for best quality.

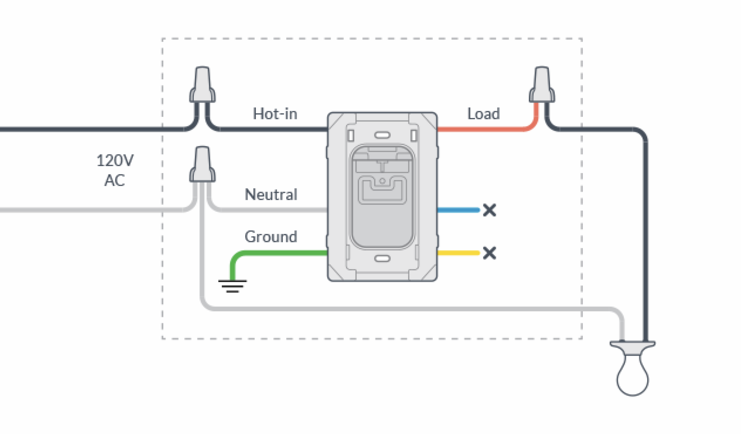

Wired Backplate- Single Pole Wiring

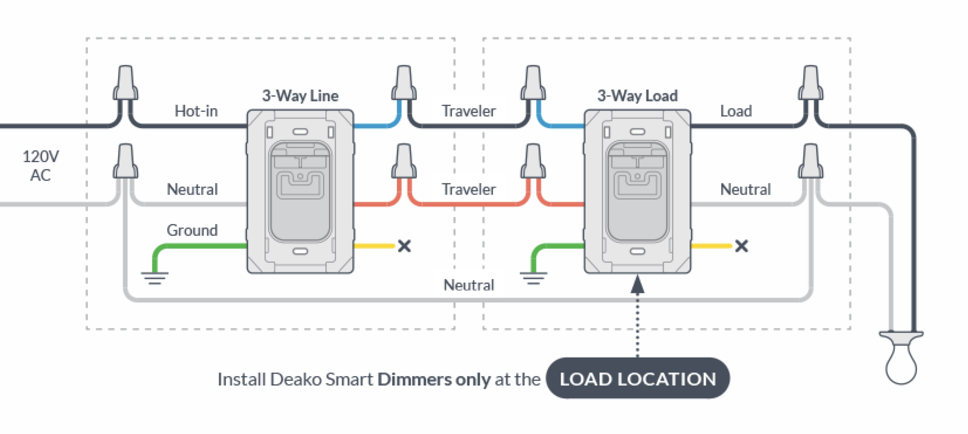

Wired Backplate- 3-Way Wiring

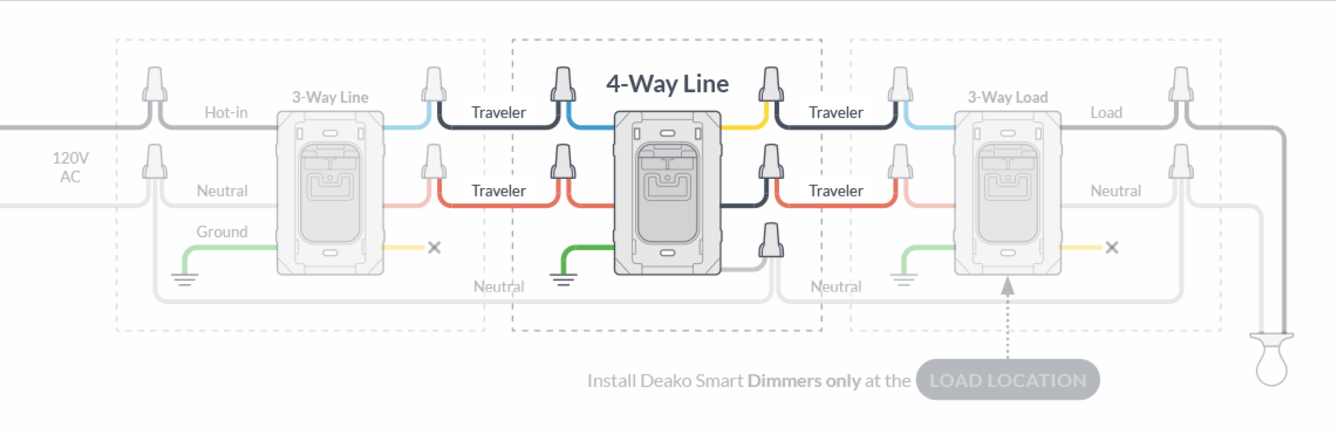

Wired Backplate- 4-Way Wiring

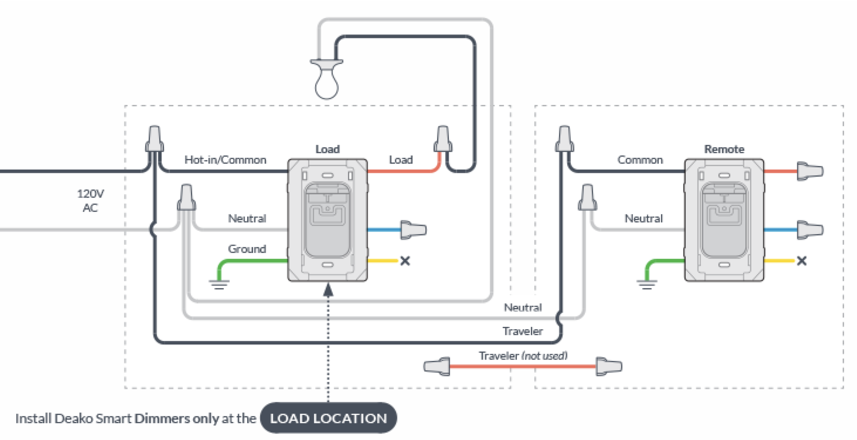

Wired Backplate- Dead End 3 Way, Wired for Smart Devices
